Omron Host Link Driver

Not counted towards your tag license limit.

The Omron Host Link driver provides an interface to an Omron PLC via a serial port.

Driver Errors: To learn more about the cause of an error condition, refer to the Driver Summary Report and the Driver Error Report, both of which are available in the Reports page. The Show Stats button will also provide current and last error messages: Show Statistics Button Widget

Related information:

Omron I/O Addressing

Omron Error Codes

Best Practices for Tags

Omron Host Link Driver properties ID tab

The ID tab of every tag includes the same common elements: Name, Area, Description, and Help ID.

Name:

Uniquely identifies each tag in the application. If the tag is a child of another, the parent names will be displayed in a separate area before the name field.

You may right-click on the tag's name to add or remove a conditional start expression.

Area

The area field is used to group similar tags together. By defining an area, you make it possible to:

Filter for particular tag groups when searching in the tag browser
Link dial-out alarm rosters to Alarm tags having a particular area
Limit the number of tags loaded upon startup.
Filter the alarm display to show only certain areas.
Filter tag selection by area when building reports

When working with Parent-Child tag structures, the area property of all child tags will automatically match the configured area of a parent. Naturally, you can change any tag's area as required. In the case of a child tag, the field background will turn yellow to indicate that you have applied an override. (Orange in the case of user-defined types. Refer to Configuration Field Colors)

To use the area field effectively, you might consider setting the same Area for each I/O driver and its related I/O tags to group all the tags representing the equipment processes installed at each I/O device. You might also consider naming the Area property for the physical location of the tag (i.e. a station or name of a landmark near the location of the I/O device). For serial port or Roster tags, you might configure the Area property according to the purpose of each tag, such as System or Communications.

You may define as many areas as you wish and you may leave the area blank for some tags (note that for Modem tags that are to be used with the Alarm Notification System, it is actually required that the area field be left blank).

To define a new area, type the name in the field. It will immediately be added. To use an existing area, use the drop-down list feature. Re-typing an existing area name is not recommended since a typo or misspelling will result in a second area being created.

There is no tool to remove an area name from VTScada since such a tool is unnecessary. An area definition will exist as long as any tag uses it and will stop existing when no tag uses it (following the next re-start).

Description

Tag names tend to be brief. The description field provides a way to give each tag a human-friendly note describing its purpose. While not mandatory, the description is highly recommended.

Tag descriptions are displayed in the tag browser, in the list of tags to be selected for a report and also on-screen when the operator holds the pointer over the tag’s widget. For installations that use the Alarm Notification System, the description will be spoken when identifying the tag that caused the alarm.

The description field will store up to 65,500 characters, but this will exceed the practical limits of what can be displayed on-screen.

This note is relevant only to those with a multilingual user interface:
When editing any textual parameter (description, area, engineering units...) always work in the phrase editor. Any changes made directly to the textual parameter will result in a new phrase being created rather than the existing phrase being changed.
In a unilingual application this makes no difference, but in a multilingual application it is regarded as poor practice.

Help Search Key

Used only by those who have created their own CHM-format context sensitive help files to accompany their application. Refer to Custom Help Files

Server List

Select (or create) a named server list. (Driver Server Lists) Servers for the list must be defined using the Application Configuration dialog, as described in Servers for Specific Services. Smaller sites that do not have multiple servers, or that use only the default server list, need not configure this field.

Omron Host Link Driver properties Serial tab

The Serial tab for the Omron Host Link driver tag properties folder consists of attributes used to identify and establish a connection the Serial Port tag that the Omron Host Link driver should use to transmit data to the I/O device. The Serial tab is also used to select the communication protocol to be used in transmissions of data between the I/O device and the driver.

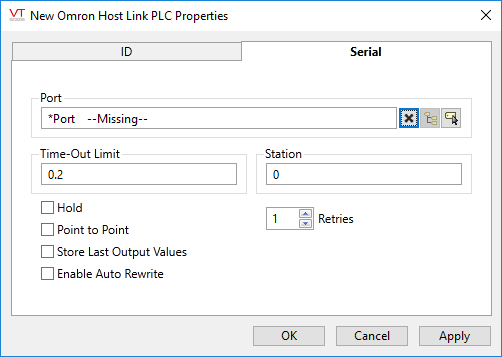

Omron driver serial tab

Port

Enables you to select the Serial Port tag or TCP/IP tag you wish to be associated with this driver tag. A Serial Port tag opens a serial port to enable communications between VTScada and your PLC or RTU. A TCP/IP tag enables you to connect to a series of hosts, allowing you to transmit data across a network or over the Internet.

The Port field can be cleared using the X button that appears to its right.

Time-Out Limit

Sets the receiver time-out limit (i.e. the time in seconds or fractions of a second that this driver should wait for a reply from the PLC or RTU).

Hold

Select this to have I/O tags attached to the driver hold their last value in the event of a communication failure. If not selected, tags will have their value set to invalid on a communication failure.

Point To Point

Select whether the Point To Point protocol to be used by the Omron Host Link driver in communications with the PLC.

If selected, the driver will use point-to-point protocol (PPP) to communicate with the PLC.

If the Point To Point check box is not selected, the driver will use multi-drop protocol.

By default, the Point To Point check box is not selected.

Station

Enter the PLC station address in this field.

Retries

The number of times to retry a message before declaring an error.

Use only if the driver is connected to a device that uses a serial port or a UDP/IP port that is configured to be polled. When connected directly to a device using TCP/IP, this value should normally be set to 0 since TCP/IP is a guaranteed message delivery protocol.
For unreliable communications, such as radio, set to 3 or 4.

Store Last Output Values

When selected, the driver will maintain a record of the last value written to each output address. This may be useful in at least two situations:

For hardware that does not maintain its state during a power loss and must be restored to that state when re-started.
When failed hardware is replaced by a new device and you would like to start that device with the values last written to the old one.

If the last output values are stored, they may be re-written by either of two methods:

Automatically, when communication is restored to the device.
Manually by way of a button press. See, Rewrite Outputs Widget for details.

Changing this value from selected to deselected will cause all stored values to be erased immediately.

If this driver is being used in conjunction with a Driver Multiplexer, then configure the Driver Multiplexer to store the last values, not the drivers connected to the Multiplexer. In this case, only the Multiplexer should be configured to re-write automatically.

Enable Auto Rewrite

If selected, the Store Last Output Values option will also be activated. This option causes the driver to rewrite the last value written to each output, in the event that communications are lost and then restored.

Use this option only if you are certain that you want the last values to be rewritten automatically after an interruption in driver communications.
