Used by: Allen Bradley Driver, CIP Driver, DNP3 Driver, Driver Multiplexer, Modbus Compatible Device , Omron Driver, Siemens S7 Driver, SNMP Driver.
* Does not use the Style Settings tag.
The Rewrite Outputs widget is used to force a driver to re-send the last set of values, written to outputs. The button will be enabled only if the driver has been configured to store the values.
This feature may be required if your application uses certain types of hardware that do not retain a memory of their register values during a power loss. It may also be useful when the physical hardware is replaced because the new device cannot know what was stored in the registers of the old.

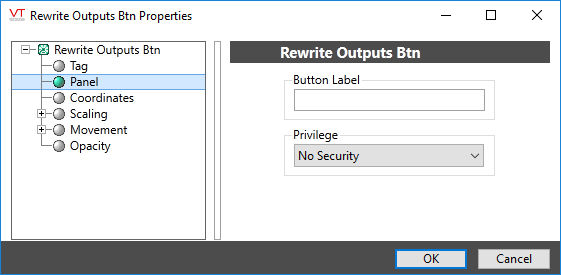

The properties dialog for the Rewrite Outputs widget:
There are only two user-configurable options. You may change the text for the button, and you have the option of restricting access to this function by applying an application-specific security privilege.
If the label is to include an ampersand (&), enter two ampersands (&&).
Basic Components\Multi-Variable\
Analytics\Communications\Output Controls\
