* Does not use the Style Settings tag.

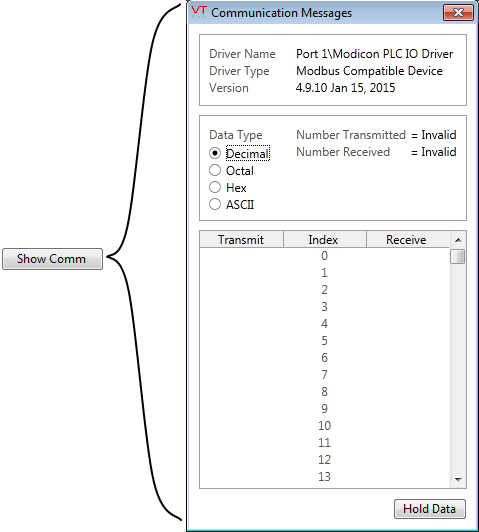

The Comm Messages Button tag widget is used to draw a button that can be clicked to display communications data (transmit and receive communication message strings) for an associated communication driver tag.
Buttons:
Hold Data The Hold Data button will freeze the display. Otherwise the dialog updates continuously as messages are transmitted.

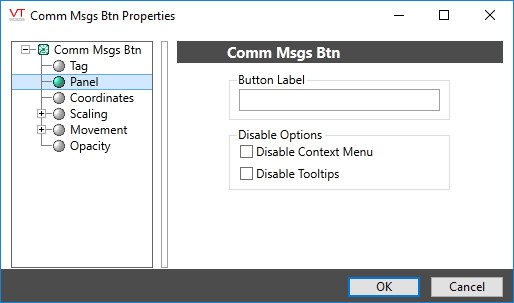

The properties dialog for this widget appears as follows:
Button Label
Provide the text (if any) that will be displayed on the button.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Analytics\Communications\Connection Status\
Analytics\Diagnostics\
Each driver has its own version of the communication messages dialog, as described in the following topics.
Allen-Bradley Communication Messages Dialog
CalAmp Diagnostic Driver Communication Messages Dialog
Campbell Scientific Array Driver Communication Messages Dialog
Campbell Scientific PakBus Driver Communication Messages Dialog
Data Flow Communication Messages Dialog
DNP3 Driver Communication Messages Dialog
Enron Modbus Driver Communication Messages Dialog
Fisher ROC Driver Communication Messages Dialog
MDS Diagnostic Driver Communication Messages Dialog
Modbus Compatible Communication Messages Dialog
NMEA 0183 Communication Messages Dialog
Omron Communication Messages Dialog
Polling Driver Messages Dialog
Siemens S7 Communication Messages Dialog
SNMP Communication Messages Dialog
