The communications Show Statistics Button widget is used to draw a button that can be clicked to display communication statistics for either the device associated with the button, or all devices in your system.
* Does not use the Style Settings tag.

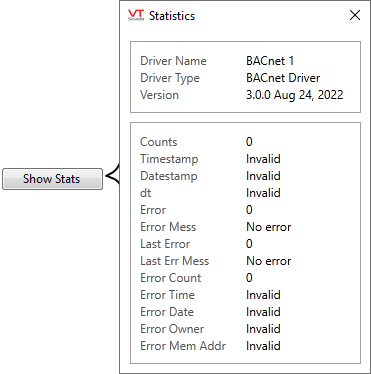

Example shows the BACnet Statistics dialog. Content will vary by driver.
Driver Name The name of the driver (within the driver's code) for which statistics are being displayed.
Driver Type Which driver type these statistics are for.
Version The version number and date that this driver was created.
Counts The number of successful communications since the system started.
Timestamp The time of the last successful communication.
Date Stamp The date of the last successful communication.
dt The Response time - that is, the time between a request for information and the message being received.
Error The error number (code) for the current error.
Error Mess A message describing the type of communications error that has occurred.
Last Error The error number (code) for the last error that occurred.
Last Error Mess The message describing the type of communications error that last occurred.
Error Count The number of errors that have occurred since the system started.
Error Time Time when the last error message was recorded.
Error Date Date when the last error message was recorded.
Error Owner Further details regarding the message.
Error Mem Addr The memory address associated with the error.

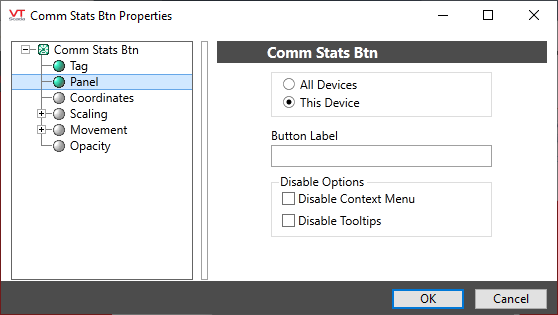

The properties dialog for this widget:
You can choose to display statistics for just the attached driver, or for all drivers.
Button Label
Provide the text (if any) that will be displayed on the button.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Analytics\Communications\Connection Status\
Analytics\Statistics\
Analytics\Diagnostics\
Each driver has its own version of the communication statistics dialog, as described in the following topics.
