TI505 Device Driver

Not counted towards your tag license limit.

Use this driver to communicate with devices in the Simatic TI505 family.

Note that the driver is designed for use only with TCP/IP connections.

Do not attempt to write bit-packed analogs. The protocol doesn't allow for the setting of a single bit in the PLC register. Attempting to do so will clear the other bits.

This driver supports multiple TCP/IP port connections between a single instance of the driver and the RTU.

Related Application Properties

TI505PropagateOnlyOnDataChange

TI505FailoverCount

TI505SharedRPC

TI505 Driver properties ID tab

The ID tab of every tag includes the same common elements: Name, Area, Description, and Help ID.

Name:

Uniquely identifies each tag in the application. If the tag is a child of another, the parent names will be displayed in a separate area before the name field.

You may right-click on the tag's name to add or remove a conditional start expression.

Area

The area field is used to group similar tags together. By defining an area, you make it possible to:

Filter for particular tag groups when searching in the tag browser
Link dial-out alarm rosters to Alarm tags having a particular area
Limit the number of tags loaded upon startup.
Filter the alarm display to show only certain areas.
Filter tag selection by area when building reports

When working with Parent-Child tag structures, the area property of all child tags will automatically match the configured area of a parent. Naturally, you can change any tag's area as required. In the case of a child tag, the field background will turn yellow to indicate that you have applied an override. (Orange in the case of user-defined types. Refer to Configuration Field Colors)

To use the area field effectively, you might consider setting the same Area for each I/O driver and its related I/O tags to group all the tags representing the equipment processes installed at each I/O device. You might also consider naming the Area property for the physical location of the tag (i.e. a station or name of a landmark near the location of the I/O device). For serial port or Roster tags, you might configure the Area property according to the purpose of each tag, such as System or Communications.

You may define as many areas as you wish and you may leave the area blank for some tags (note that for Modem tags that are to be used with the Alarm Notification System, it is actually required that the area field be left blank).

To define a new area, type the name in the field. It will immediately be added. To use an existing area, use the drop-down list feature. Re-typing an existing area name is not recommended since a typo or misspelling will result in a second area being created.

There is no tool to remove an area name from VTScada since such a tool is unnecessary. An area definition will exist as long as any tag uses it and will stop existing when no tag uses it (following the next re-start).

Description

Tag names tend to be brief. The description field provides a way to give each tag a human-friendly note describing its purpose. While not mandatory, the description is highly recommended.

Tag descriptions are displayed in the tag browser, in the list of tags to be selected for a report and also on-screen when the operator holds the pointer over the tag’s widget. For installations that use the Alarm Notification System, the description will be spoken when identifying the tag that caused the alarm.

The description field will store up to 65,500 characters, but this will exceed the practical limits of what can be displayed on-screen.

This note is relevant only to those with a multilingual user interface:
When editing any textual parameter (description, area, engineering units...) always work in the phrase editor. Any changes made directly to the textual parameter will result in a new phrase being created rather than the existing phrase being changed.
In a unilingual application this makes no difference, but in a multilingual application it is regarded as poor practice.

Help Search Key

Used only by those who have created their own CHM-format context sensitive help files to accompany their application. Refer to Custom Help Files

Server List

Select (or create) a named server list. (Driver Server Lists) Servers for the list must be defined using the Application Configuration dialog, as described in Servers for Specific Services. Smaller sites that do not have multiple servers, or that use only the default server list, need not configure this field.

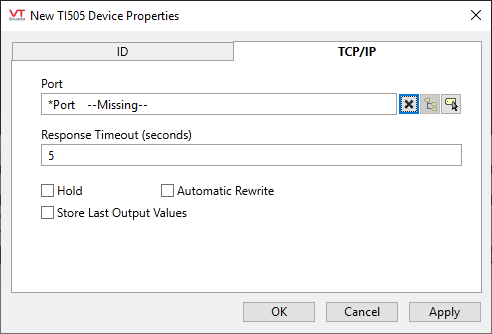

TI505 Driver properties TCP/IP tab

The following properties are configured in the TCP/IP tab:

Port

Select the TCP/IP tag through which this device will communicate. Note that only TCP/IP ports will work. The TI505 device driver cannot be used with Serial ports.

Response Timeout (seconds)

The number of seconds to wait for a response before raising an error.

Hold

Select this to have I/O tags attached to the driver hold their last value in the event of a communication failure. If not selected, tags will have their value set to invalid on a communication failure.

Store Last Output Values

Flag indicating that the last values written to the device should be maintained. If true, the driver will maintain the last values written for each address, allowing these value to either be re-written manually or automatically.

Automatic Rewrites

Flag indicating the driver should automatically rewrite the last value written to each address upon successful establishment of communications after a driver error occurred.
