Pump-Off Controller Displays

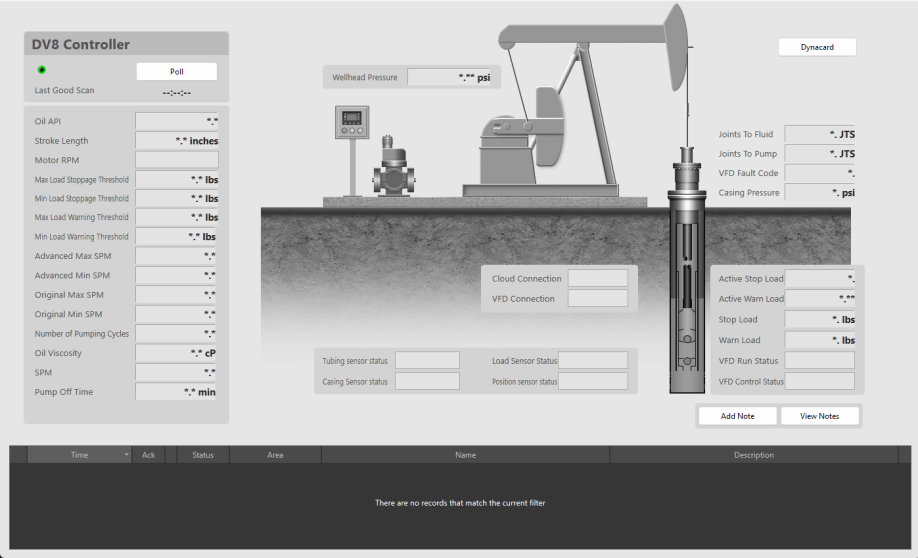

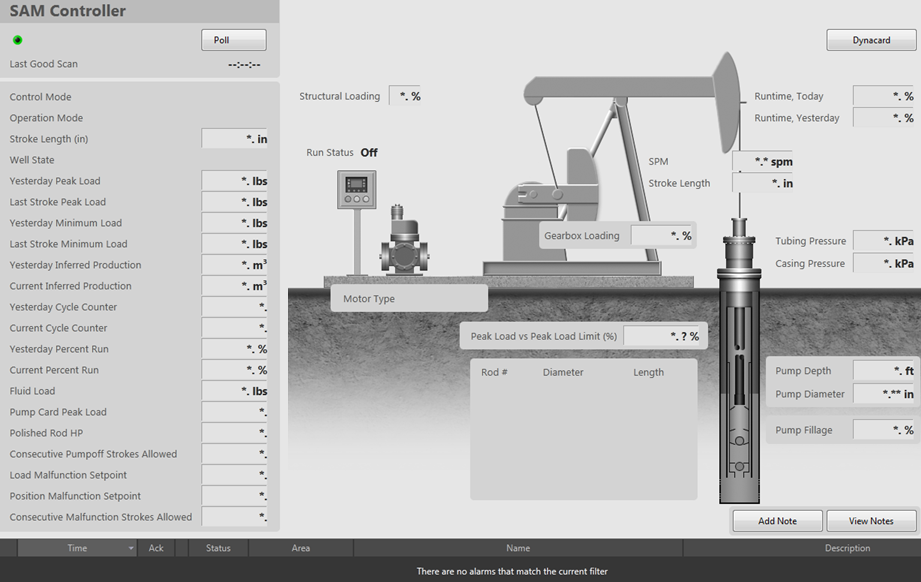

The controller overview displays are meant to be at-a-glance overviews of the pump-off controller’s values. These display telemetry information and provide certain controls.







POC Overview Display Buttons

Although the displays for these pump-off controllers have different telemetry values, the three controls are the same:

Poll

Initiates a poll of each of the pump-off controller’s process tags a single time. Clicking the Poll button will bring back the latest telemetry data, but not the Dynacard data.

Add Note and View Notes

These buttons allow quick access to the pump-off controller’s notebook tag, allowing users of the system to write, read and respond to notes.

Each opens a pop-up page containing the configured notebook. Refer also to: Operator Notes Page

Dynacard

The Dynacard button launches the Dynacard display screen. (Dynacard Display)
