Used by: MultiSmart Station, MPE Duplexer, MPE SC, Context tag.
* Does not use the Style Settings tag.
The Site Icon Widget creates a color indicator that both displays the status of communications to the associated station and provides a click-able link to the built-in Station Page for the associated station tag. This is very similar to the Site Draw widget, and uses the same color system for its concentric rings.

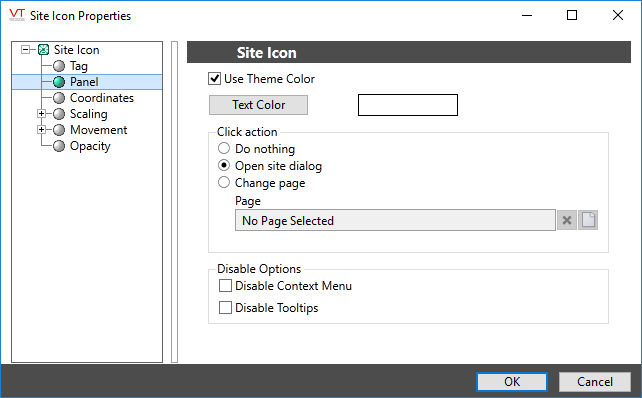

The Properties dialog for the Site Icon widget:
Use Theme
When selected, the station page that opens when the operator clicks on this icon will use the color theme configured for the application. Defaults to gray if not selected.
Text Color
Use to change the color of all text used in the associated Station Page. Text defaults to white if left unselected. Click to open the Select Color dialog.
Click Action
The usual action upon clicking a Site Icon dot is for the site dialog to open. This dialog-type page is built into your application. As an alternative, you may choose to have no action occur, or you may select any page that you have created for the site. If using your own page instead of the site dialog, you should consider parameterizing that page so that it may display the tags relevant to the given server. See: Page Properties Parameters Tab.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
The Site Legend provides a guide to the meaning of each color used in the icon. The center dot will change color according to the status of I/O within the site - Invalid data or an alarm in any I/O tag will indicted by the dot. The outer ring indicates the status of device driver communication with the site.
The Site Legend can be accessed via the Site Tools folder as follows:
- Open the Site Tools folder of the Widgets palette.
- Drag the Site Legend onto the open page in the Idea Studio.
