Used by: Polling Driver, DataFlow Systems RTU
* Does not use the Style Settings tag.
Use this widget to give operators the ability to enable or disable polling without needing to open the Polling Driver's properties dialog. Operators must possess either the Modify Tags privilege or the Manual Data privilege to change this setting.
While polling is disabled, no communication will be sent or received through the station. To switch from a timed poll to continuous communication, use the Fast Poll option of the Polling Driver.

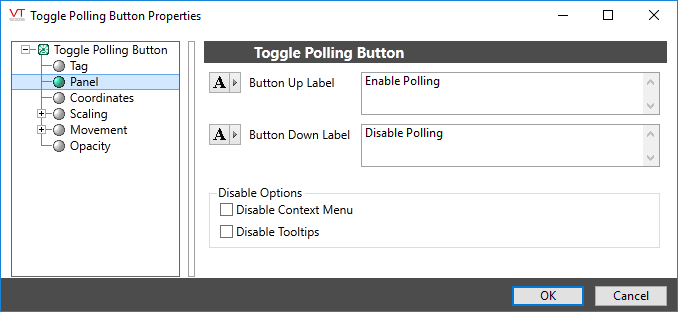

The properties dialog for the Polling Button object:
Button Up Label
The label displayed when polling is disabled, and a click on this button will enable it. You may provide any text or expression you prefer.
Button Down Label
The label displayed when polling is enabled, and a click on this button will disable it. You may provide any text or expression you prefer.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Tag Types\Communications\Link Management\Polling Driver
