Used by: Serial Port, TCP/IP Port, UDP/IP Port.
* Does not use the Style Settings tag.
The Comm Line tag widget is used to draw a line that changes any combination of color, width and style to indicate the state of the associated tag. Used for port tags rather than digitals.

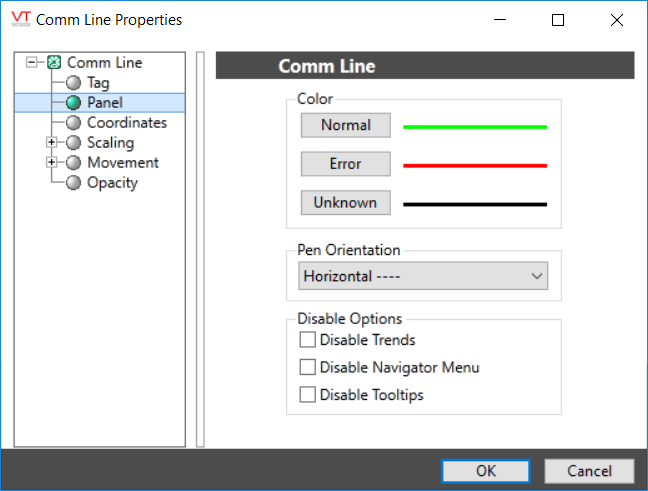

The properties dialog for the Comm Line is as shown:
Color
Opens the Select Pen dialog. From this dialog, you can select the color, line style and width that the Comm Line object will use to show each state of the underlying tag.
Pen Orientation
Use the Pen Orientation drop-down list to select one of four orientations for the completed Comm Line object (horizontal, vertical, left 45 degrees, or right 45 degrees). The orientation remains the same for all tag states.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
