Campbell Driver Pointers Widget

* Does not use the Style Settings tag.

Used by: Campbell Scientific Driver.

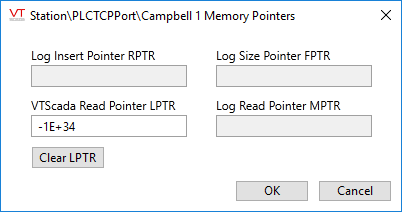

The Campbell Pointers widget creates a button that operators may press to display the status of the sample table reads. Values are for display only, not for configuration. A button allows the operator to clear the local (to the dialog) copy of the last pointer read.

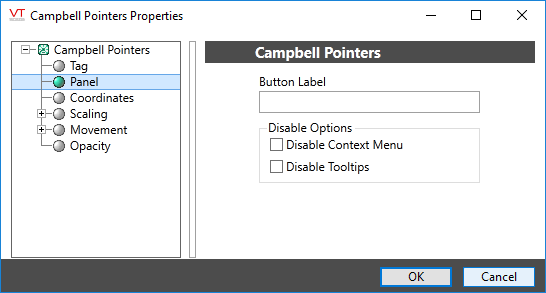

The properties dialog for this widget. The only user-configurable option is the label for the button.

Tag Types\I/O Devices (Drivers)\PLCs and RTUs\Campbell Scientific Array Driver\
