Used by: Data Flow RTU Tag, Polling Driver Tag.
* Does not use the Style Settings tag.
The Active Indicator widget is used to create a rectangular indicator that turns green when the associated RTU is the actively connected site. The rectangle will otherwise be red.

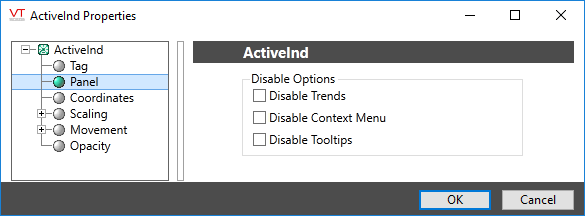

Configuration options in the properties dialog for this widget are as follows:
The only configurable parameters for the Active Indicator style dialog are the Disable Options check boxes for limiting operator interaction.
