Recipe Update Widget
Used by: Recipe Book Tag
* Does not use the Style Settings tag.
The user interface for building, managing and running recipes is provided by the The Recipe Page. You are advised to use this rather than attempt to build a custom UI with the component widgets.
Operators can use the Update button widget to write new values to a running batch process for the currently selected recipe & version. This action is protected by a security privilege. The button is enabled only while a process is running.
If confirmation is configured, operators must indicate that they want to proceed with this operation after selecting the button.
Each Recipe Book tag contains internal variables to keep track of the current recipe and current version. Every widget linked to a Recipe Book will refer to those variables, using the same current recipe and version for its operation.
Use the Recipe Selector Widget and Recipe Version Widget to choose which recipe and version should be current.

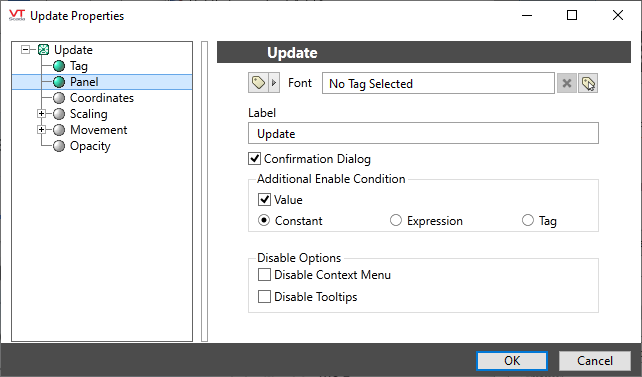

The properties dialog for the Update widget.
Font
Assign a font to be used for labels within the widget.
Label
Provide a title for the button. Defaults to "Start".
Confirmation Dialog
When selected, the operator must confirm the action before processing will begin.
Additional Enable Condition
Select a tag or create an expression that must be TRUE (1) in order for the update operation to proceed.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Tag Types\Recipes\Recipe Book\
