Recipe Note Widget
Used by: Recipe Book Tag
* Does not use the Style Settings tag.
The user interface for building, managing and running recipes is provided by the The Recipe Page. You are advised to use this rather than attempt to build a custom UI with the component widgets.
Notes are associated with batch runs, and can be required by the Start button.
Optionally, you can use this widget to create a text entry field where operators can create a note to be used by the next batch run.
Each Recipe Book tag contains internal variables to keep track of the current recipe and current version. Every widget linked to a Recipe Book will refer to those variables, using the same current recipe and version for its operation.
Use the Recipe Selector Widget and Recipe Version Widget to choose which recipe and version should be current.

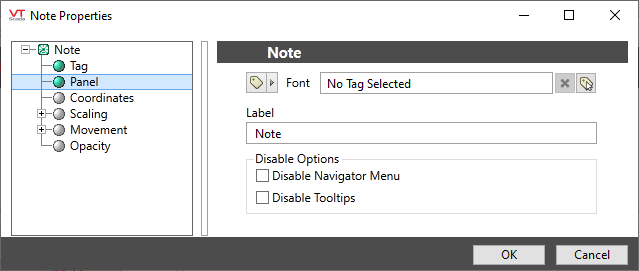

The properties dialog for the Recipe Note widget.
Font
Assign a font to be used for labels within the widget.
Label
Provide a title for the button. Defaults to "Note".
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Tag Types\Recipes\Recipe Book\
