Next Poll Index Widget

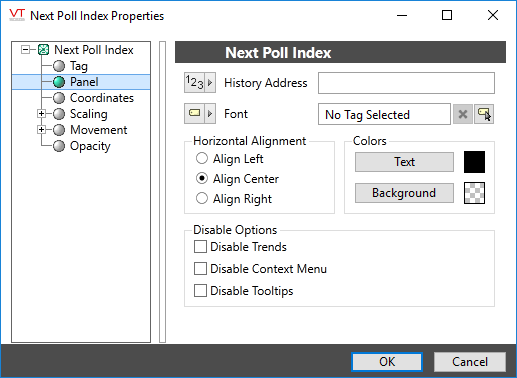

The properties dialog for the Next Poll Index widget:
Tag
The Tag field displays the name and description of the Enron Modbus tag that is associated with this widget. You can use this to select a different tag or parameter to use as the data source for this widget.
History Address
Provide the numeric value of the history address being monitored. History addresses typically start at 701.
Font
Select the font tag to be used to format the display. Defaults to the system font if none selected.
Horizontal Alignment
Controls whether the value is left, center or right-aligned within the space provided for the widget.
Colors
Select the colors to be used for the text and for the background of the widget. Defaults to black text on a transparent background.
Disable Options
Disable selected operator-interaction features of this widget.
