Add Lock Button Widget

Used by:  All tags

* Does not use the Style Settings tag.

The Add Lock Button widget allows authorized operators to add a Control Lock to the linked tag. If the linked tag is a parent of other tags, then all output tags below that parent will be locked.

Authorized operators are those with the Add / Remove Locks privilege.

Control Locks

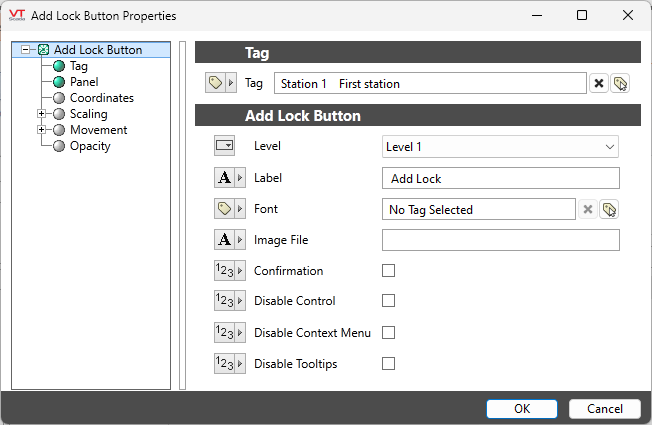

The properties dialog for the Add Lock Button widget:

Tag

Select the tag for which this button will add a lock.
A lock can be applied only to a single tag, but if that tag is a parent, Control Locks will apply to all of the child tags.

Level

Select the Lock Level (priority) for the locks that will be created using this button. Refer to Control Locks

Label

You should provide a label that describes which tag (or hierarchy of tags) will be locked by this button.

Font

Select the font to be used by the label

Image File

Select an image to be used in addition to, or instead of the label.

Confirmation

If selected, operators will be prompted to confirm that they wish to create a Control Lock.

Disable Options

Disable selected operator-interaction features of this widget.

See: Operator Interaction Controls

Tools\Control Locks
