Mobile Internet Client - Site Pages
Some applications will have tags organized into hierarchies. These are used to group all the I/O tags within a pumping station, well or other component. A common example is the use of the MultiSmart tag or one of the MPE station tags.
If this is the case for your application, then the mobile browser interface will include a Sites(*) entry in the menu.

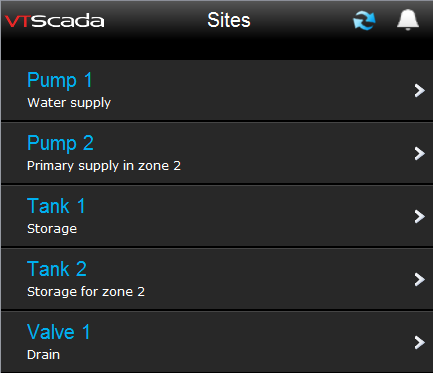

A sites list, as shown by the MIC
You can use this to browse into these tag hierarchies to view or control the various I/O tags within the structure. The following illustration is taken from the VTScada tutorial - the tags you see on your own screen will match the contents of your application.
(*) The word "Sites" is controlled by an application property, ContainerTerm

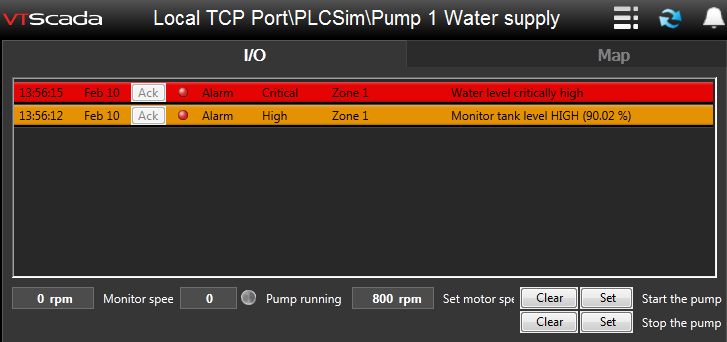

A site details display, as shown by the MIC
Viewing a map may require a very large data transfer to your device.
