Tool Tip Widget

Not linked to any tag.

* Does not use the Style Settings tag.

The Tool Tip widget is used for adding extra information to a screen that should not be displayed unless requested. The widget is drawn as a rectangular area. When an operator moves the pointer over the area, the information that you configure will be displayed.

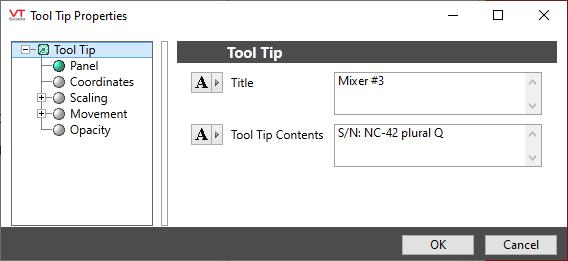

The properties dialog for the Tool Tip widget. Note that you may use any of the following for both title and content:

• Static Text
• Parameters
• Linked Tag Property
• Expression

Title

Text to display in bold above the body of the tool tip.

Titles are limited to 99 characters.

Tool Tip Contents

Usually, the greater part of the information to display.

Both the title and the contents are optional. You may choose to display only the title in bold, or only the contents.

Widget Folders:

Decorations

Tools\Standard Library
