Token Requests List

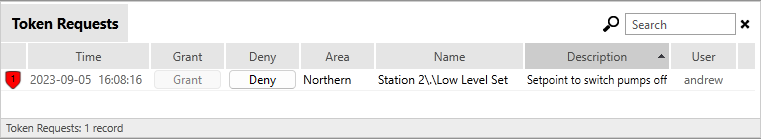

A Tokens Requests List widget is an Alarm List widget, configured to display active Control Token Requests.

Refer to Control Tokens for a full explanation of what Control Tokens are and how they work.

The Column Format of the list must be set to Token Requests. When set, the Starting List is restricted to Token Requests as the only option.

Do not change the Alarm Database selection. The widget will not display Control Token Requests if the Alarm Database is set to anything other than "All".

Columns display:

Token Level Icon

The number and color indicate the priority of each Control Token request.

Time

When the token was requested.

Grant

Enabled only for authorized operators (The token owner who has the Add / Release Token privilege or anyone with the Token Administrator privilege.)

Aside from Token Administrators, token requests can be granted only by the person who owns the token, where "ownership" may be restricted not only to a user, but to the workstation, the sign-in session where the user created the token, or other definition as defined by custom code.

Deny

Enabled only for authorized operators (The token owner who has the Add / Release Token privilege or anyone with the Token Administrator privilege.)

See notes under Grant for who may deny requests.

Area, Name, Description

Information about the tag for which a Control Token is being requested.

User

The person requesting the token.

Tools \ Control Tokens
