* Does not use the Style Settings tag.
Create a button that opens an Historical Data Viewer window with a preselected set of tag values, over a preset time range. The HDV page that opens will include all of the standard tools for changing the tag selection, legend, time range and scale factor.

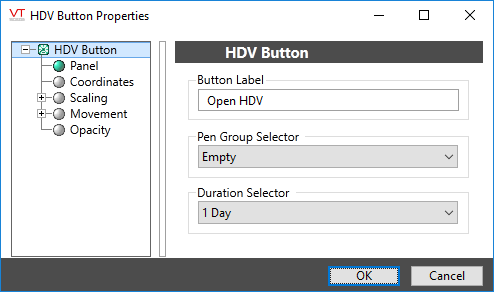

The properties dialog for the HDV Button widget:
Button Label
The default label is generic. You are advised to modify this to include more information about what will be included in the plot
If the label is to include an ampersand (&), enter two ampersands (&&).
Pen Group Selector
An existing pen group must be chosen, otherwise this button provides nothing more than a link to an empty HDV page.
Pen groups are created in the Historical Data Viewer page, using the Tag Selector dialog.
Duration Selector
Choose the length of time that will be shown initially when the HDV page opens.
