* Can use properties from a Style Settings tag.
A component of the Analog Bar & Indicator Widget. Refer to that topic for a full discussion.
You may use this widget to build your own custom High Performance HMI widgets.
Bar showing most features enabled
The history range (shown in dark blue) is visible only if values are set for both Recent Time Range and Refresh time.

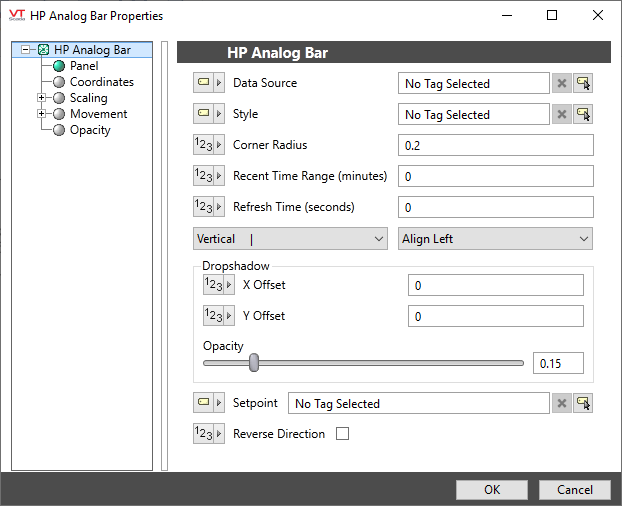

Configuration properties for the bar
Configuration properties are plain by design. Where the properties dialog for the Analog Bar and Indicator widget provides a spin box to set the Recent Trend and Refresh Time, this dialog uses raw data entry tools. The purpose is to give you more options when using this tool in custom widgets of your own.
