Create a button that the operator can click to save the Modem Manager's internal log buffer to a file for later analysis. View this file with the Event Log List.

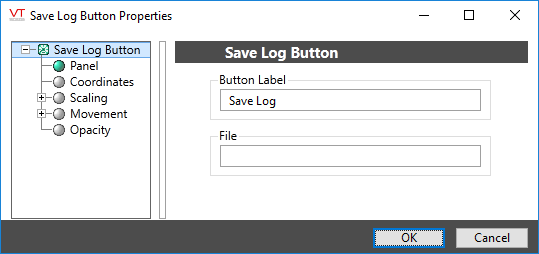

The properties dialog for the Save Log Button dialog:
You can create your own custom label for the button with the Button Label field. If the label is to include an ampersand (&), then double that character (&&). In the File field, use the default name of "modem.log" in most cases.
VTScada will save the modem log file in your application folder, but you may save it to a sub-folder by specifying the folder name. For example: "\Modem Log Files\Modem.log".
VTScada will not create sub-folders automatically. If you specify a sub-folder as the file location, it is up to you to create that folder before running your application.
Analytics\Communications\Modems\
Analytics\Diagnostics\
Event Log List - View information saved with the Save Log button.
